What happens to an automatic gate when the power goes out?
On the Gulf Coast, hurricane season means grid outages are a real, recurring risk — not a hypothetical. What your gate actually does when that happens isn’t guesswork: a professional operator’s manual spells out exactly how battery backup, the AC-power-fail setting, and a manual backdrive switch interact. Here are the real numbers, from the manual, and a tool to work out your own gate’s situation.
It depends on what backup power the operator has and how it’s configured — and both of those are specific, checkable settings, not guesswork. A professional swing-gate operator (LiftMaster’s CSW24UL is a widely-installed example) normally ships with two 12V 7AH batteries, upgradable to two 33AH batteries for longer backup. The operator can be set to one of three responses when grid power fails: keep cycling normally off battery (the common default), open and latch open after about 15 seconds (used at some multi-home entrances for jurisdiction/egress reasons), or finish its cycle and latch closed. If the battery itself runs down to below 23 volts, the operator stops trying to run the gate and latches it at a programmed limit instead — and whether it can still be pushed open by hand at that point depends on a separate BACKDRIVE switch (MANUAL vs. SECURE).
Source: LiftMaster CSW24UL Swing Gate Operator Owner’s Manual (battery specifications, AC-power-fail settings table, BATT FAIL logic, BACKDRIVE switch).
The instant grid power cuts out
Nothing dramatic happens right away. If the operator has a battery backup — standard on most professional installations — it switches over automatically and the gate keeps working, usually configured to behave exactly as it did on grid power. That’s the manual’s default “BATT” setting: “Normally set to BATT. Run on battery if AC power fails.”
If there’s no battery backup at all, the gate simply stops wherever it is in its cycle — mid-swing, mid-slide, fully open, fully closed. No power means no motor movement, and that’s true whether the outage lasts five minutes or five days. Every properly installed gate has a manual release for exactly this situation; see how to manually open an automatic gate for the step-by-step for your operator type.
Install class and the typical Low-Battery default
| Install class | Typical default on AC power loss | Why |
|---|---|---|
| Residential (1-4 homes) | BATT — run on battery, behave normally | Manual: vehicle access trumps security for this class |
| Commercial / General Access (5+ homes) | BATT, or OPEN if required locally | Manual: “for local jurisdiction requirement, set to OPEN so gate opens ~15 sec after AC power fail” |
| Commercial (security-priority site) | BATT, then latches CLOSED if battery also fails | Security trumps convenience for this class |
| Industrial (restricted access) | BATT, then latches CLOSED if battery also fails | Highest security priority; closes and stays closed by default |
LiftMaster CSW24UL manual, install-class definitions and settings-by-class table (Low Battery switch, AC Fail Open / Anti-Tail switch notes, Aux Relay Out defaults).
If the battery runs out too
Below about 23 volts, the operator stops drawing the battery down further and latches the gate at a programmed limit instead — which limit depends on the install class and how the installer set the Aux Relay Out option (see the table above). At that point, whether a person can push the gate open or closed by hand comes down to one more switch: BACKDRIVE. Set to MANUAL, the gate can be pushed or slid by hand with no power at all. Set to SECURE, the manual specifically notes it is built to resist that — a deliberate security trade-off some commercial and industrial sites choose on purpose.

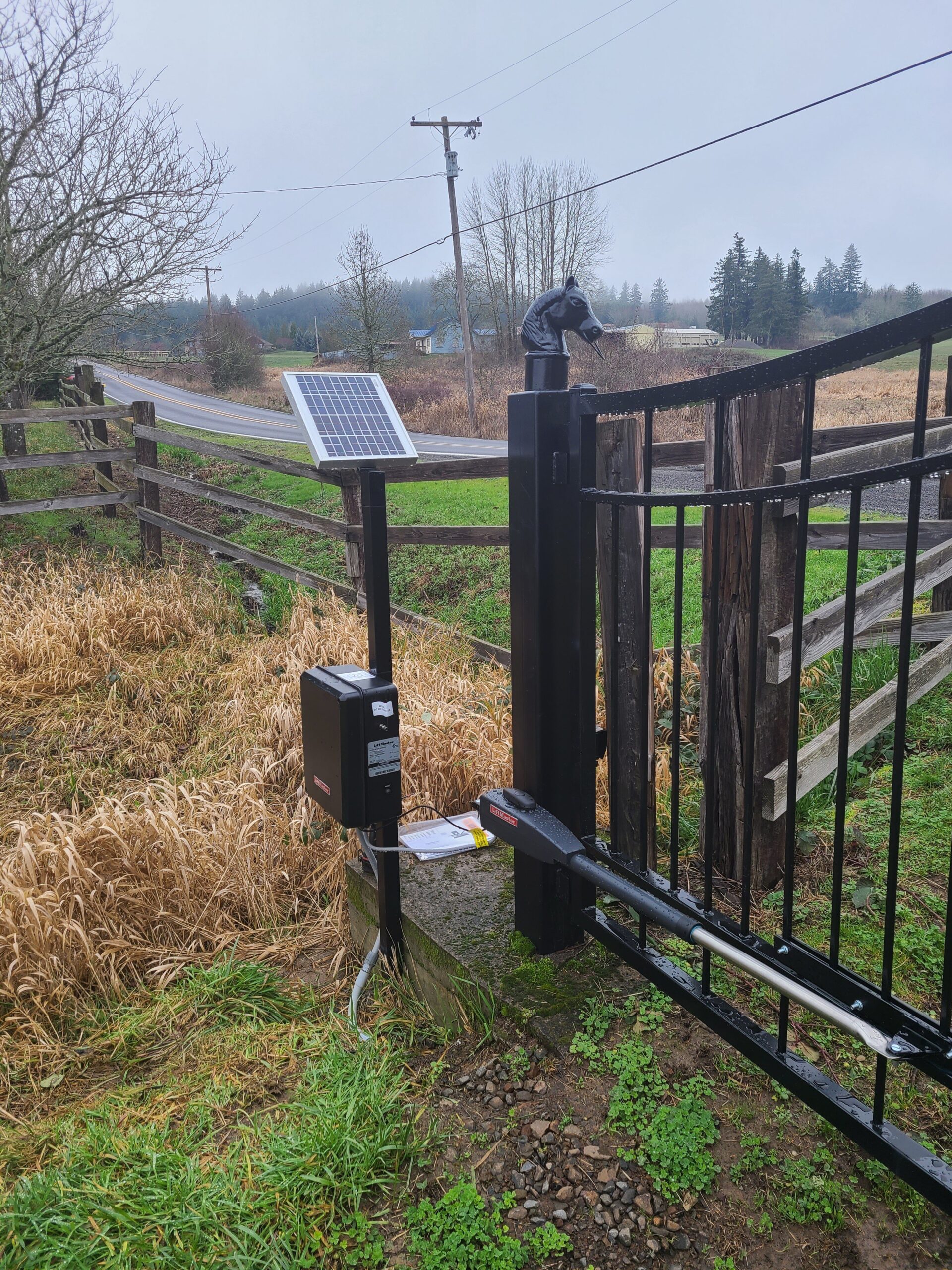

For a property where extended Gulf Coast outages are a real, recurring concern, the two real fixes are a bigger battery bank (see above) or removing the grid dependency altogether — see our solar-powered automatic gate page for how that works. For the full manual-release procedure once backdrive is confirmed MANUAL, see manually opening an automatic gate.
What will my gate actually do right now?
Based on how a widely-installed professional swing-gate operator (LiftMaster CSW24UL) is built to respond to a grid power failure. Settings vary by brand and model — confirm your own installer’s configuration if you’re not sure.
Reads the LiftMaster CSW24UL manual’s AC-power-fail and BATT FAIL logic: a charged battery runs the operator normally until voltage drops to about 23V, at which point it latches at a programmed limit instead of draining further. The BACKDRIVE switch decides whether it can still be pushed open by hand once both AC and battery power are gone.
What Galveston customers say
5.091 Google reviews · read them all on Google
Very professional and friendly. Gotten automatic gates done and they are done to perfection! Thank you
We just installed iron gate and it looks amazing thank you very much mustang fencing .
I am so pleased with the fence!! Your solution was exactly the right one and the team did a highly professional job. Frankly, I was amazed at how clean the job site was at the completion of the project. Feel free to list me as a reference and a very happy customer. Thanks again and please let the men know That I appreciate their hard work and quality craftsmanship.
Reviews shown word for word from the Mustang Fencing Services Google Business Profile (Galveston), captured 2026-10-12.
Questions we get about this
Does an automatic gate open or close automatically when the power goes out?
How much battery backup does a gate operator typically have?
What happens when the backup battery itself runs out?
Can I still push the gate open by hand once the battery is dead?
Does solar power make a gate immune to outages?
Is there always a manual way to open an automatic gate?
Sources
Checked October 16, 2026. Rules change, so confirm with the City before you build.
- LiftMaster CSW24UL Swing Gate Operator Owner’s Manual — Battery specifications (2 x 7AH standard, 33AH upgrade kit); settings-by-install-class table (Low Battery, AC Fail Open); BATT FAIL critically-low-battery logic (23V threshold, Aux Relay Out defaults); BACKDRIVE switch (MANUAL vs. SECURE).
