How Wide Should a Driveway Gate Be?

No Galveston rule sets a driveway gate width. Size it from the driveway and the vehicles that use it: the City treats 10 ft as the minimum driveway access to a lot and counts 9 ft of width per parked car. Then add what the gate itself needs, a swing radius or a slide gate’s roll-back space, which is where most sizing mistakes happen.

  • Reviewed Sept 27, 2026
  • Sources: City of Galveston LDR · CLFMI / ASTM F1184 · Texas Property Code
  • Gate sizer
Call (346) 910-8641Size your gate
Wide new wood double gate with diagonal braces, set between a red brick house and a new pine privacy fence
A wide wood double gate between a brick house and a new pine fence, Galveston. The width is set by what has to pass through it.
The short answer

At least as wide as the driveway it closes, and never under 10 feet for vehicles. No code in the City of Galveston sets a driveway gate width, but its development rules give you the numbers to size one: the driveway access to each lot must be at least 10 feet wide (LDR 6.302(E)(2)), and a residential driveway counts 9 feet of width per parked vehicle (LDR 8.201(A)(2)). So one car needs a 10 ft clear opening; two side by side need 18 ft plus room for mirrors. Then check the gate’s own space: a swing leaf sweeps a radius equal to its length, and a cantilever slide gate is about 1.4 times the opening long, because ASTM F1184 calls for a back frame of at least 40% of the opening.

10 ftMinimum driveway access to each lot (LDR 6.302(E)(2))
9 ftWidth per vehicle for residential driveway parking (LDR 8.201(A)(2))
1.4×Cantilever gate length: opening + back frame of at least 40% (ASTM F1184 via CLFMI)
10 ftSetback an HOA may require from a laned road (Property Code 202.023(c)(4))

Sources: City of Galveston Land Development Regulations 6.302, 8.201 and 2.501; CLFMI guide specification 32 31 13 (ASTM F1184); Texas Property Code 202.023. Read September 27, 2026.

Start with the driveway, not a catalog size

Gate kits come in stock widths, but the right width is the one your driveway and vehicles need. Measure the paved width where the gate will stand, not at the street, and decide whether vehicles will pass one at a time or two side by side.

The City of Galveston doesn’t regulate gate width, but two of its rules are a good floor:

  • 10 feet. In the subdivision standards, “the driveway access to each lot shall have a minimum width of 10 feet” (LDR 6.302(E)(2)). A gate narrower than that pinches the access the lot was laid out with.
  • 9 feet per vehicle. For a house’s driveway to count toward its required parking, it must provide “a minimum area of 9 feet wide x 20 feet long per vehicle” (LDR 8.201(A)(2)). Two cars side by side is 18 feet.

Then add margin for what actually comes through: wide mirrors, a trailer, a boat, a delivery truck, or a drive that curves as it reaches the gate. That margin is your call; no code sets it. The sizer below lets you add it per side.

City of Galveston driveway numbers, in feet

Widths from the Land Development Regulations that a driveway gate opening should not undercut

One parking width9 ftMinimum lot access10 ftTwo parking widths18 ft
City of Galveston LDR 8.201(A)(2) (9 ft wide x 20 ft long per vehicle) and 6.302(E)(2) (10 ft minimum driveway access); 18 ft is two 9 ft widths. Gate width itself is not regulated.
Plan view of the same 12 foot driveway opening closed three ways. A: a single swing gate with one 12 foot leaf sweeping a 12 foot radius. B: a double swing gate with two 6 foot leaves, each sweeping 6 feet. C: a cantilever slide gate 16.8 feet long, the 12 foot opening plus a 40 percent back frame, shown closed across the opening and open beside the fence, with 16.8 feet of roll-back space to keep clear. Not to scale. DRIVEWAY (toward the street) A. SINGLE SWINGB. DOUBLE SWINGC. CANTILEVER SLIDE 12 ft openingone 12 ft leafsweeps a 12 ft radius 12 ft openingtwo 6 ft leaveseach sweeps 6 ft closed open 12 ft opening 16.8 ft of roll-back space Gate = 12 ft opening + 40%back frame = 16.8 ft long.Open, it sits beside the fence:keep that strip clear.(drawn at a smaller scale)
S-1
DrawingOne 12 ft opening, three gates
BasisGeometry; CLFMI 32 31 13 / ASTM F1184 (40% back frame)
ScaleNot to scale
Same opening, different space. A single leaf needs the most swing room; a slide gate needs a long clear strip along the fence.

What each gate type needs beyond the opening

  • Single swing. One leaf as long as the opening. It sweeps a quarter circle with a radius equal to its length, so a 12 ft leaf needs about 12 ft of clear, fairly level ground on the swing side, and all its weight hangs from one post.
  • Double swing. Two leaves, each half the opening, so each sweeps half the radius. It is the usual answer for wider drives. See single vs double swing gates.
  • Cantilever slide. No swing at all, which helps on a short or sloped drive, but the gate is longer than the opening. The chain link industry’s guide specification, following ASTM F1184, calls for a back frame support section of “a minimum of 40% of the opening,” so a 12 ft opening means a gate about 16.8 ft long and a matching strip of clear space beside the fence to roll into. See sliding gate space requirements and cantilever vs V-track slide gates.

Width and weight go together. A wider leaf is heavier and puts more load on the hinge post, and on an automatic gate it decides the operator you need. See driveway gates for materials and styles.

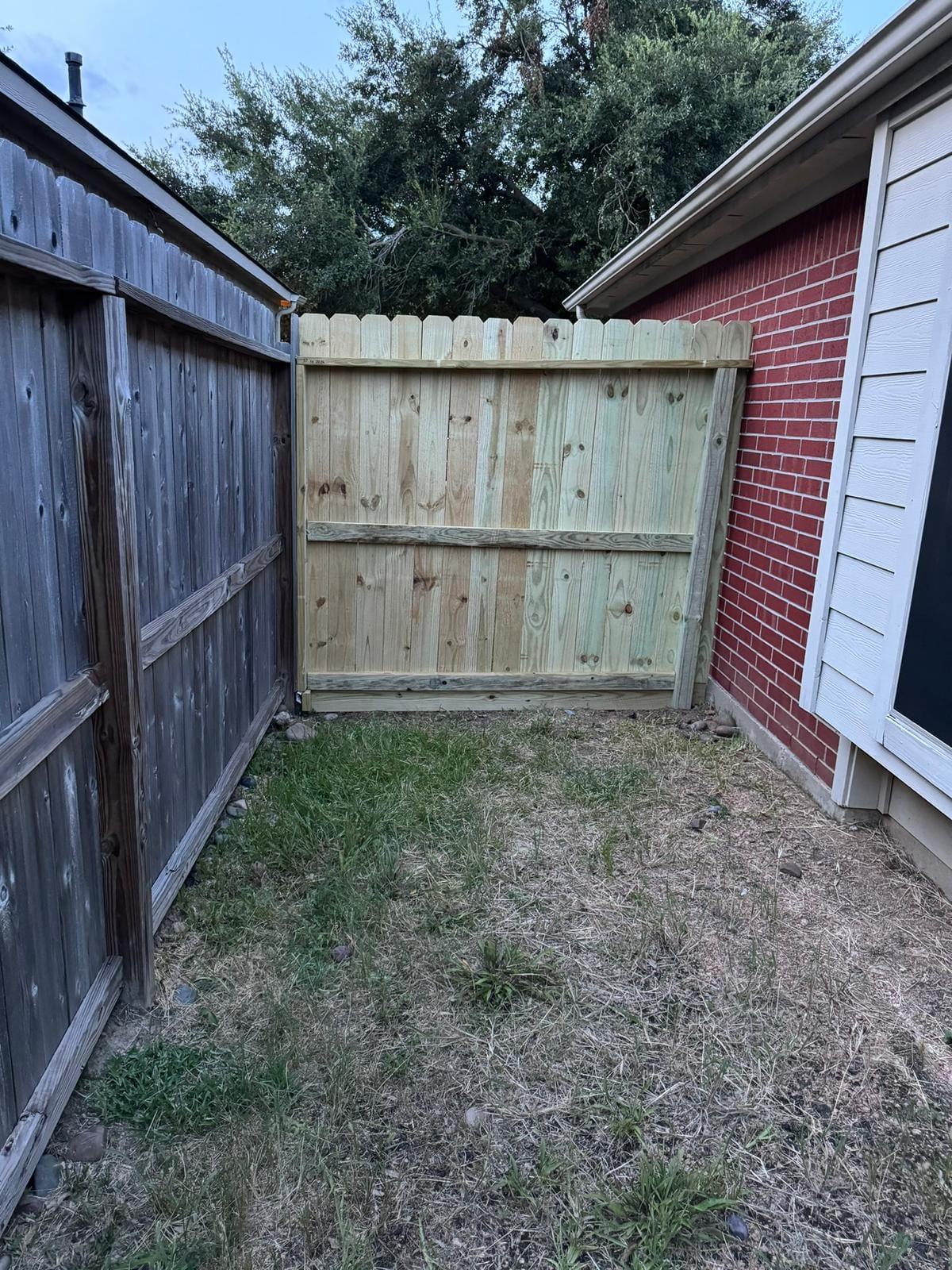

A new wood gate panel with rails between an older weathered wood fence and the brick wall of a house, above a patchy lawn
A new wood gate between an older fence and a brick house, same Galveston job. Where a house wall limits the opening, measure between the posts, not the lot.
New wood privacy fence with a wide framed gate section beside a single-storey house
A wide framed gate section in a new wood fence, Galveston.
Double gate with vertical wood infill boards in a black metal frame, set in a wood fence at the side of a house above a grass path
A double gate with wood infill in a steel frame, Galveston. Two leaves halve the swing radius.
New pressure-treated pine privacy fence running along a concrete driveway, with a gate hung on black strap hinges at the near end
A pine fence along a concrete driveway with a gate on strap hinges, Galveston.
Plan of a driveway meeting a laned roadway. The gate stands across the driveway at least 10 feet back from the right-of-way line, with a car waiting between the gate and the road. Notes say an HOA may require a driveway gate at least 10 feet back from the right-of-way on a laned roadway, and that in a City of Galveston front yard a solid fence or gate may be 4 feet tall, or 5 feet if at least 60 percent transparent. Not to scale. LANED ROADWAY (two marked lanes) RIGHT-OF-WAY LINE DRIVEWAY GATE at least 10 ft car waits here, off the road An HOA may require a driveway gateto sit at least 10 ft back from theright-of-way on a laned roadway(Property Code 202.023(c)(4)) City of Galveston front yard: a solidfence or gate 4 ft max, 5 ft if at least60% transparent (LDR 2.501(B)(2))
S-2
DrawingSetback from the road, and front-yard height
BasisProperty Code 202.023(c)(4); Transportation Code 541.302(7); LDR 2.501(B)(2)
ScaleNot to scale
Width is only half the fit. Where the gate sits, and how tall it can be in a front yard, are set by the HOA and the City.

Driveway gate sizer

Enter your paved driveway width and how you use it. The sizer sets a minimum clear opening from the City’s driveway numbers, then shows what that opening means for each gate type: leaf sizes and swing radius, or slide gate length and roll-back space. No prices; it sizes the opening.

–MINIMUM CLEAR OPENING
How it’s sized
This gate type
Rules to check

Based on City of Galveston LDR 6.302(E)(2), 8.201(A)(2) and 2.501(B)(2); CLFMI guide specification 32 31 13 (ASTM F1184 cantilever back frame at least 40% of the opening); Texas Property Code 202.023(c)(4). Read September 27, 2026. Margins are your choice, not a code number.

Rules that affect a driveway gate’s size and place

  • Height in a front yard. In the City of Galveston a solid fence or wall in a front yard may be 4 feet tall, or 5 feet if at least 60 percent transparent (LDR 2.501(B)(2)); a gate in that fence line is part of it. More in HOA approval for a driveway gate.
  • Setback from a laned road. An HOA may require a driveway gate to be set back at least 10 feet from the right-of-way where the driveway meets a road with at least two marked lanes (Property Code 202.023(c)(4); Transportation Code 541.302(7)). It also leaves room for a car to wait off the road while the gate opens.
  • Automatic gates. Operators and gate construction fall under UL 325 and ASTM F2200; see UL 325 and ASTM F2200 explained and electric gate installation.
  • Commercial and multifamily gates across a fire apparatus access road have fire code requirements of their own; see fire department access for commercial gates.

What Galveston customers say

5.0
91 Google reviews · read them all on Google
★★★★★
Very professional and friendly. Gotten automatic gates done and they are done to perfection! Thank you
Tannia Cravinas · Google review · a year ago
★★★★★
I highly recommend using these guys as they’re very professional. Their work stands out and have very high attention to detail.
Fausto Jimenes · Google review · 2 years ago
★★★★★
Great work and really nice people, got everything done really fast and well done, i highly reccomended.
Isabel Lopez · Google review · a year ago

Reviews shown word for word from the Mustang Fencing Services Google Business Profile (Galveston), captured 2026-09-27.

Questions we get about this

How wide should a driveway gate be?
At least as wide as the paved driveway where it stands, and not under 10 feet for vehicles. The City of Galveston requires at least 10 feet of driveway access to each lot and counts 9 feet of width per parked vehicle, so two cars side by side need about 18 feet plus room for mirrors.
Is there a code minimum for a residential driveway gate width in Galveston?
Not for the gate itself. The City sets a 10 ft minimum driveway access to each lot (LDR 6.302(E)(2)) and a 9 ft width per vehicle for driveway parking (LDR 8.201(A)(2)); sizing the gate below those numbers narrows the driveway.
Should I choose a single or double driveway gate?
A single leaf as long as the opening sweeps a radius of that full length and hangs all its weight on one post. A double gate splits the opening into two leaves, each sweeping half the radius, which suits wider drives.
How much room does a sliding driveway gate need?
A cantilever slide gate is longer than the opening: the chain link industry guide specification, following ASTM F1184, calls for a back frame of at least 40% of the opening. A 12 ft opening means a gate about 16.8 ft long and a clear strip about that long beside the fence.
How far back from the street should a driveway gate be?
If your HOA requires it and the driveway meets a road with at least two marked lanes, at least 10 feet from the right-of-way (Property Code 202.023(c)(4)). Even without that rule, setting it back lets a car pull off the road while the gate opens.

Sources

Checked September 27, 2026. Rules change, so confirm with the City before you build.

  1. City of Galveston, Land Development Regulations — 6.302(E)(2) 10 ft minimum driveway access; 8.201(A)(2) 9 ft x 20 ft per vehicle; 2.501(B)(2) front-yard fence heights.
  2. Chain Link Fence Manufacturers Institute, guide specification 32 31 13 Chain Link Fence and Gates — Cantilever slide gates per ASTM F1184 Type II: back frame support section at least 40% of the opening; 40 lb initial pull force.
  3. Texas Property Code, Chapter 202 — 202.023(c)(4): an HOA may require a driveway gate at least 10 ft from the right-of-way on a laned roadway.
  4. Texas Transportation Code, Section 541.302 — 541.302(7) laned roadway: at least two clearly marked lanes.
