Single vs Double Swing Gate: Which Do You Need?
A single swing gate hangs the whole opening on one post and needs clear ground as deep as the opening is wide. A double gate splits it into two leaves that each need half that depth, but adds a centre stop, a drop rod and, if automated, a second operator. The deciding numbers are your opening and the clear space behind it.
Pick a single gate when the opening is modest and you have clear, level ground at least as deep as the opening is wide. Pick a double gate when you don’t. A swing leaf sweeps a quarter circle as long as itself, so one 14 ft leaf needs 14 ft of clear depth, while two 7 ft leaves need 7 ft. The chain link industry’s specifying guide also sizes the hinge post by leaf width: 4.0 in for a leaf over 10 to 18 ft, 2.875 in for a leaf over 4 to 10 ft (gates up to 6 ft tall). A double gate adds a drop rod into a concrete receiver at least 6 in across and 24 in deep, and, if automated, an operator on each leaf.
Sources: Chain Link Fence Manufacturers Institute guide specification 32 31 13; ASTM F2200 and UL 325 provisions as printed in the LiftMaster CSW24UL installation manual. Read September 27, 2026.
Swing space is the real difference
A swing gate leaf pivots on its hinges and sweeps a quarter circle. The radius of that circle is the length of the leaf. That one fact decides most single-versus-double questions:
- Single swing. One leaf as long as the opening. A 14 ft opening means a 14 ft leaf and 14 ft of clear, fairly level ground on the side it swings into.

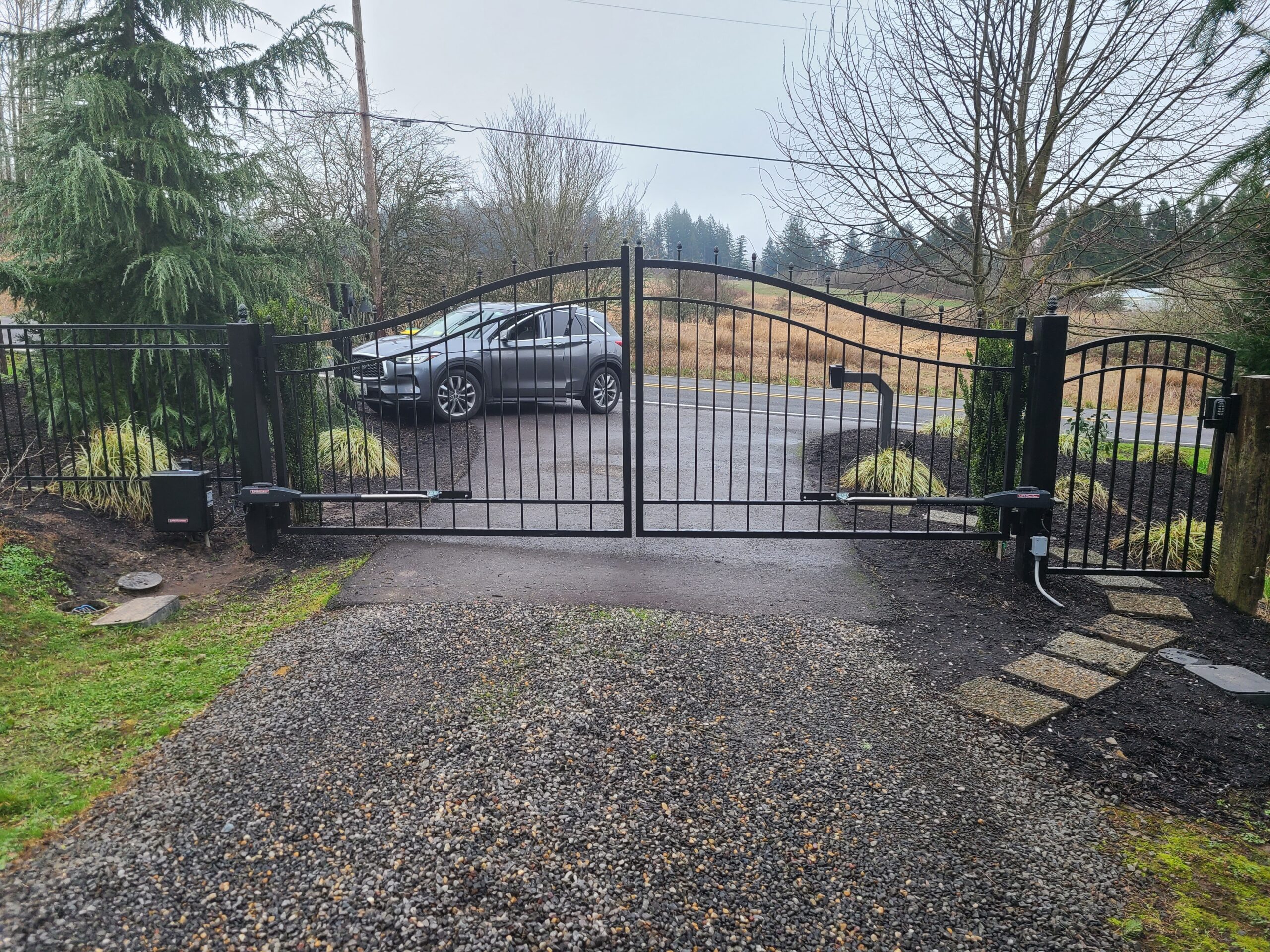

- Double swing. Two leaves, each half the opening, hinged on opposite posts. Each sweeps half the radius, so the same 14 ft opening needs only 7 ft of depth.
What eats that depth on a real lot: a car parked just inside the gate, the front steps or pilings of a raised house, a planting bed, a utility pedestal, or ground that rises into the swing. Measure from the gate line to the first thing the leaf would hit, not to the house.
Start with the opening itself. In the City of Galveston the driveway access to each lot is at least 10 ft wide (LDR 6.302(E)(2)), so a vehicle gate narrower than that pinches the drive. See how wide a driveway gate should be.
Ground swept by the gate, in square feet
Quarter-circle area swept by the leaves for three common openings
Weight, posts and hardware
A single leaf puts the whole gate’s weight on one hinge post, with the latch end a full opening away. That is why the post has to grow with the leaf. The Chain Link Fence Manufacturers Institute’s guide specification sizes gate posts by leaf width. For gates up to 6 ft tall:
- leaf up to 4 ft: 2.375 in outside diameter
- over 4 to 10 ft: 2.875 in
- over 10 to 18 ft: 4.0 in
For gates over 6 ft tall the sizes step up: 4.0 in for a leaf over 6 to 12 ft, 6.625 in over 12 to 18 ft, and 8.625 in over 18 to 24 ft. So a 16 ft opening, 8 ft tall, calls for a 6.625 in hinge post as a single gate, or two 4.0 in posts as a double. That table is written for chain link; wood, vinyl and iron gates follow their maker’s instructions, but the principle is the same. More in how much weight gate hinges can hold.
A double gate trades weight for parts. The same guide specification calls for:
- a drop bar receiver set in a concrete footing at least 6 in in diameter and 24 in deep, to hold the fixed leaf closed;
- holdbacks for the leaves of every double gate, so they don’t swing in the wind when open;
- a bottom clearance of 3 in, grade permitting, and no more than 3 in between the gate frame and the post at the hinges and latch.
Details in do double drive gates need a drop rod and centre stop.
Single or double swing gate?
Enter the opening and how much clear, level ground there is on the side the gate will swing into. The planner works out leaf length and swing depth for each option, the post size the chain link industry table calls for, and the safety rules that apply if the gate is automated. No prices.
Swing depth is geometry: a leaf sweeps a quarter circle as long as the leaf. Post sizes are from the CLFMI guide specification 32 31 13 table for chain link gates; wood, vinyl and iron gates follow their maker’s instructions. Operator limits are one model’s published ratings (LiftMaster CSW24UL). Read September 27, 2026.
If the gate will be automated
Automatic gate operators are listed to UL 325, and the gate they move should be built to ASTM F2200. The LiftMaster CSW24UL swing operator’s manual reprints the rules that matter for this choice:
- One operator per leaf. For dual gate applications, “power will have to be connected to each operator.” A double gate needs two operators and a second set of limits and force settings.
- Leaf size limits. That operator is rated for a gate up to 800 lb at 16 ft or 600 lb at 18 ft. A single leaf longer than that needs a heavier operator, or the opening should be split into two leaves.
- Hung on hinges only. “Gate MUST swing freely and be supported entirely by its hinges”, and any wheels come off. A long single leaf that only works with a wheel under it is a poor candidate for automation.
- Clearances. When open, a leaf should cover no more than 4 in of post or wall measured from the hinge centre, and stay at least 16 in from any wall or column; otherwise that zone needs entrapment protection.
- Direction. “Swinging gates shall not open into public access areas.” An automatic gate that would swing out over a sidewalk or street has to swing inward, which is where the clear depth above matters most, or be a slide gate.
- People. A separate pedestrian gate is required near an automated vehicular gate. See do I need a walk gate with my driveway gate.
More in UL 325 and ASTM F2200 explained and electric gate installation.
Side by side
| Single swing | Double swing | |
|---|---|---|
| Leaf length | The whole opening | Half the opening each |
| Clear depth needed | Equal to the opening | Half the opening |
| Hinge posts | One, sized for the long leaf | Two, sized for the short leaves |
| Extra hardware | Latch | Drop rod and receiver footing, centre stop, holdbacks |
| Automated | One operator | Two operators, set up as a pair |
| Where it fits | Narrower openings with plenty of room behind | Wide openings, short or crowded drives |
What Galveston customers say
5.091 Google reviews · read them all on Google
Very professional and friendly. Gotten automatic gates done and they are done to perfection! Thank you
I highly recommend using these guys as they’re very professional. Their work stands out and have very high attention to detail.
Excellent service and quality! Professional, on time, and great craftsmanship. Highly recommend!
Reviews shown word for word from the Mustang Fencing Services Google Business Profile (Galveston), captured 2026-09-27.
Questions we get about this
Should I get a single or double swing gate?
How much room does a swing gate need to open?
Does a double swing gate need two operators?
What holds a double gate closed?
Can an automatic gate swing out toward the street?
Sources
Checked September 27, 2026. Rules change, so confirm with the City before you build.
- Chain Link Fence Manufacturers Institute, guide specification 32 31 13 Chain Link Fence and Gates — Gate post outside diameter by leaf width and height; §3.5.A swing gates: 3 in bottom clearance, 3 in hinge/latch offset, drop bar receiver footing 6 in x 24 in, holdbacks for double gates.
- LiftMaster CSW24UL swing gate operator, installation manual — ASTM F2200 swing gate provisions (4 in and 16 in clearances), UL 325 instructions (no opening into public access areas; separate pedestrian gate), gate hung on hinges only, maximum gate 800 lb/16 ft or 600 lb/18 ft, dual gate power to each operator.
- City of Galveston, Land Development Regulations — 6.302(E)(2): minimum driveway access width of 10 ft to each lot.
